Lab-Scale Throughput, Connected End to End

Fully automated chemistry and 5-part haematology analysers for diagnostic centres and hospital labs. Results move through the LIS into REACH AI, then to your client-branded app, teleconsultations and the patient's EMR.

  • 400Chemistry tests/hour with ISE
  • 60/hr5-part CBC samples
  • 10Chemistry panels on the menu
  • 15 µLBlood per CBC, paediatric-friendly
The lab set

Two Workhorses For A Busy Lab

Automated clinical chemistry analyser
200 tests/hr · 400 with ISESTAT priorityOpen or closed reagents

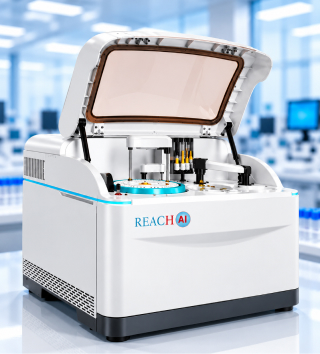

Fully Automated Clinical Chemistry Analyser

A compact, bench-top random-access analyser. Load up to 40 samples and 80 reagents in a refrigerated tray (2–12 °C, 24-hour cooling), then let it run unattended. Smart sampling even prepares the haemolysate for HbA1c automatically.

  • Built-in barcode reader for samples and reagents
  • Liquid-level detection and collision protection
  • Automatic pre- and post-dilution
  • Auto-washing probe, carryover < 0.05%
  • Reaction volume as low as 100 µL
  • Optional ISE module for Na⁺, K⁺, Cl⁻
  • 8 wavelengths, 340–670 nm
  • Step-by-step maintenance guide on screen

Chemistry Test Menu: 10 Panels

LiverALT, AST, ALP, γ-GT, Direct & Total Bilirubin, Total Protein, Albumin, Total Bile Acids, Prealbumin, Cholinesterase, AFU, 5'-NT
KidneyUrea, Creatinine (Jaffé & enzymatic), Uric Acid, CO₂, Microalbumin, β2-Microglobulin, Cystatin C, Retinol Binding Protein
DiabetesGlucose (GOD-POD & HK), HbA1c, Fructosamine, β-Hydroxybutyrate
HeartCK, CK-MB, LDH, α-HBDH, hs-CRP
LipidsTotal Cholesterol, Triglycerides, HDL-C, LDL-C, ApoA1, ApoB, Lp(a)
Minerals & AnaemiaIron, Ferritin, Transferrin, Calcium, Magnesium, Phosphorus, UIBC, G6PD
ImmunityIgA, IgG, IgM, Complement C3, C4
RheumatologyCRP, Rheumatoid Factor, ASO
Lung & PancreasADA, ACE, Amylase, Lipase
5-part haematology analyser
60 samples/hour15 µL sampleCyanide-free HGB

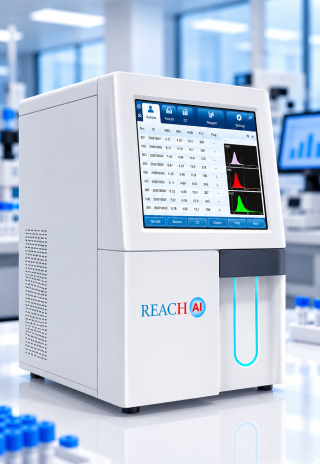

5-Part Auto Haematology Analyser

A full CBC with a true 5-part white-cell differential. Laser scatter, flow cytometry and chemical dye separate neutrophils, lymphocytes, monocytes, eosinophils and basophils, and flag abnormal cells, so fewer smears need manual review. Its compact footprint suits labs with limited space.

25 reportable parameters · 3 histograms · 3 scattergrams

White cells (5-part)WBC, Neu, Lym, Mon, Eos, Bas (% and #)
Red cellsRBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD
PlateletsPLT, MPV, PDW, PCT, P-LCR, P-LCC
Research flagsImmature cells, atypical lymphocytes, NRBC, platelet clumps

Three sampling modes: whole blood, capillary whole blood (direct, ideal for children) and prediluted. Stores up to 150,000 results with graphs.

Portable or High-Volume?

Many clients run both: high-volume analysers in the central lab and portable devices for camps, collection points and wards. All of them report into the same REACH AI record.

Choose portable when you need

  • Results in minutes, beside the patient
  • Finger-prick testing at camps or homes
  • A few to a few dozen tests a day

Choose high-volume when you need

  • Hundreds of tests a day at low cost per test
  • A broad menu: 10 chemistry panels plus 5-part CBC
  • Walk-away automation with barcode and LIS
Powered by REACH AI

From Sample Tube To Patient Follow-Up

Both analysers support two-way LIS communication (HL7 on the haematology analyser), so orders arrive automatically and results return without retyping.

  1. Step 01

    Barcode & Order

    Tubes are scanned; test orders come down from the LIS.

  2. Step 02

    Run & QC

    Analysers run the batch with built-in quality control.

  3. Step 03

    REACH AI

    Validated results join the patient's lab and X-ray history.

  4. Step 04

    Branded App

    Reports reach patients in your own white-labelled mobile app.

  5. Step 05

    Teleconsult & EMR

    Doctors follow up by video and record it in the EMR.

Quality & Certifications

  • Calibration traceable to reference methods under ISO 17511
  • Manufacturer's chemistry system takes part in international external quality assessment (CAP and RELA)
  • Westgard multi-rule, Levey-Jennings and cumulative-sum QC built in
  • Original QC material and calibrators for the haematology analyser
  • QC tools that support labs preparing for NABL (ISO 15189) accreditation
  • Supplied under CDSCO licences · CE-IVD / ISO 13485

Built For

  • Diagnostic centres
  • Hospital laboratories
  • Multi-speciality hospitals
  • Reference & hub labs
  • Children's hospitals
  • Medical colleges
  • Corporate health labs

Specifications At A Glance

Clinical Chemistry5-Part Haematology
Throughput200 tests/hr; 400 tests/hr with ISE60 samples/hr
MethodPhotometry, turbidimetry, ISE; end-point, fixed-time, kineticImpedance (RBC, PLT); laser scatter + flow cytometry + dye (WBC diff); cyanide-free HGB
Sample2–45 µL; 40 sample positions15 µL whole/capillary; 20 µL prediluted
Reagents80 positions, refrigerated 2–12 °C3 routine reagents, 2-year shelf life
PerformanceCarryover < 0.05%; 37 ± 0.1 °CWBC CV ≤ 2%, RBC/HGB CV ≤ 1.5%
ConnectivityBi-directional LIS; barcode readerLAN (HL7), USB; bi-directional LIS
Display / storagePC software10.4" touch screen; 150,000 results
Size & weight690 × 580 × 595 mm; 79 kg; water ≤ 4 L/h400 × 320 × 410 mm; 24 kg

Frequently Asked Questions

Yes. Both support two-way LIS communication. We connect them to REACH AI or to your current LIS during installation.

The chemistry analyser can run as a closed or open system, so you can choose. We help plan reagent supply either way.

A stable bench, single-phase power and, for chemistry, a purified water supply (up to 4 L per hour). We assess your lab before installation.

Yes: installation, operator training, calibration and QC support, and AMC/CMC plans.
